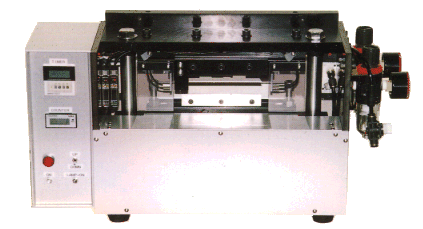

Multi Shrinker

Multi Shrinker

・Capable of processing multiple products at a time. ・No thermal damages to the tubes with the cables. ・Neither to heat-vulnerable parts by radiation shielding. ・Processing in a short time. ・No need to use magnetizing coils with a power supply that consumes electricity and dooling water.

Conveyor Shrinker

Conveyor Shrinker

・Continuous processing of Thermo-shrinking tubes. ・Homogeneous heating, giving no thermal damage to the shrinking tubes. ・Capable of processing up to 80mm shrinking-tube length. ・No thermal damage to heat-vulnerable parts even close to the tube by Shielding Radiation while keeping the safe shrinking of the tubes (Rational shield jigs are option)

Cylinder Surface Image Inspection Eq

Cylinder Surface Image Inspection Eq

・OP surface Line Cam x4 ・Cut surface Area Cam x2 ・Marking of fail point

Withstand voltage inspection Eq

Withstand voltage inspection Eq

· Optimum for AC Rated Voltage Cap. · Shortening of Testing Time · Perfect Rejection of Failures · Perfectly Safe Work!! · Complete Separation of the inspected from the Uninspected

MAGNETIZER (Twin type)

MAGNETIZER (Twin type)

MAGNETIZER

MAGNETIZER

・NO POWER CONSUMPTIO ・ Just a single pass between a pair of permanent magnets if enough to have virgin magnets magnetized.

PC Boards CUTTER, KC-100

PC Boards CUTTER, KC-100

・Chocolate-breaking V-grooved PC Boards often creates failures of the parts and components mounted on them, caused by bending. ・PC Boards Cutter KC-100 applies vertical stress perpendicularly to the PC Boards surface with a knife edge and cuts it off into smaller PC Board modules, without causing any stress and strain in the parts and components mounted on them. As a result, peeling-off of electrodes and breakage of the chips mounted can be avoided.

Automatic Heater Inspecting Device

Automatic Heater Inspecting Device

(Resister, Insulation, Withstanding Voltage, Continuity, and so on)

Automatic Assembly and Processing De

Automatic Assembly and Processing De

 J & A Sakura Co., Ltd.

 Jig & Automation Equipment

®
